2″ Lift Kit BDS suspension – Jeep Grand Cherokee WJ WG
Give your car a lift with the BDS suspension kit
When fitting accessories to your vehicle, you need to properly adapt its suspension to the increased weight. Springs from BDS Suspension are the perfect solution for this situation. They are designed to withstand full coil bind and bounce back to full height as efficiently as possible while overcoming heavy off-road obstacles. The coil springs are shot peened – the purpose of the process is to smoothen the surface and harden the material. This provides high durability and increased tensile strength. The springs easily pick out bumps and improve comfort. They are coated with a black polyester-based powder paint, which flexibility provides long-lasting protection against corrosion.
These NX² shocks give high-end performance at an affordable price. They use a pressurized nitrogen charged twin-tube design with 10-stage velocity sensitive valving for lightning fast dampening adaptive to whatever terrain you find yourself traversing on or off-road. The 2″ bodied shocks use a large 1-3/8″ fluon banded piston, self lubricating seals and a 14mm hardened chrome shaft to help resist rock chips and corrosion. The ends are dual welded for increased strength. Polyurethane bushings and metal sleeves are included to make swapping over your shocks a breeze. These shocks are offered in various stem and eyelet bushing configurations for custom applications and available to work with all current BDS lift kits. The exterior of the shocks are finishes in a durable metallic silver paint with NX² branded decals.
Specs:
- Increases ground clearance
- Allows larger tyres to be fitted
- Gives aggressive character
Coil spring specs:
- Powder-coated with a flexible polyester-based paint, which increases corrosion protection
- The material used and the production technology guarantee the preservation of the physical properties of the product for many years
- Designed to withstand the increased load of the car (winch, steel bumper)
- Dedicated to cars with a gasoline engine
Shocks specs:
- Durable metallic silver finish
- Vehicle specific valving for better control
- High-end performance at an affordable price
- Pressurized nitrogen charged twin-tube design
- Lightening fast dampening adaptive to terrain
- Large fluon banded piston with self lubricating seals
Front shock dimensions:
- Extended: 22.92″
- Compressed: 13.92″
- Travel: 9″
Rear shock dimensions:
- Extended: 22.95″
- Compressed: 14.67″
- Travel: 8.28″
Front shock mounts:
- Top mount: stem
- Bottom mount: bar pin
Rear shock mounts:
- Top mount: eyelet
- Bottom mount: eyelet

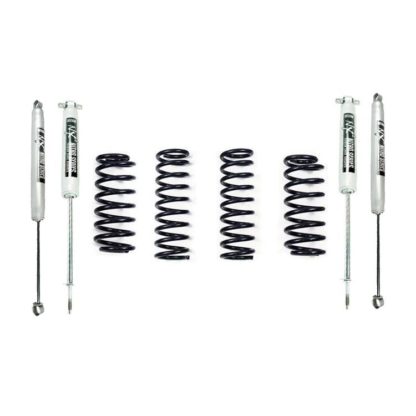

In the box:
- (2) Front coil spring
- (2) Front nitro shock NX2 Nitro series
- (2) Rear coil spring
- (2) Rear nitro shock NX2 Nitro series
Notes:
- Vehicles equipped with a Diesel engine may not achieve the stated heigh
