BASE Rack JL Wrangler 4 drs met montage steun 1545×1445 mm
BASE Rack JL Wrangler 4 drs met montage steun 1545×1445 mm
Key Features

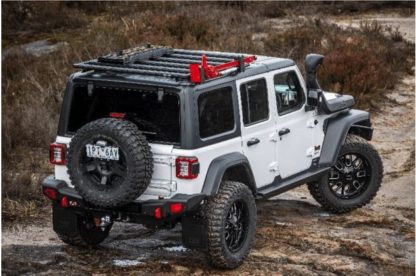

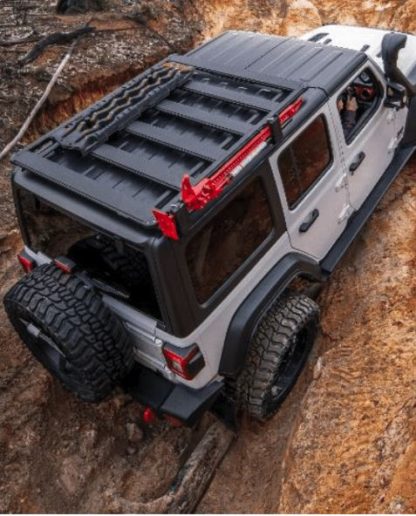

•Vehicle specific mounts for JeepWranglerJLUnlimited with factory hardtop. Note: Not suitable for vehicles fitted with a soft top or Sky One-Touch™ Power Top
•Mount kit compatible with either PN 17950010 1545x1285mm BASE Rack
•Mount feet attach to original equipment factory points in the vehicle roof
•Roof clearance from bottom of BASE Rack to high point of the vehicle roof is 35mm
•Added minimum height to vehicle is 70mm
•Front section of factory hardtop can be removed with BASE Rack in place
•Optionalwind deflector manufactured from powder-coated press formed 1.6mm aluminium

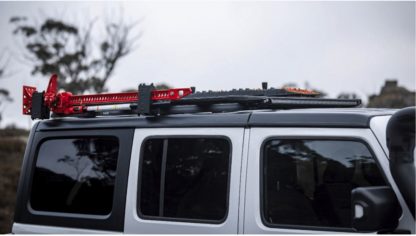

•Compatible with fitment of ARB Roof Rack LED light bar PN 1780500 either in conjunction with the deflector or light bar can be mounted in place of the deflector
•Maximum load per BASE Rack beam is 25kg. Loads must be evenly distributed and adequately secured
•Required tools for fitment: 10mm spanner x 2, 13mm spanner x 1, allen key set, torx key set, socket set, tape measure
ARB’s Roof Rack mount kit achieves the load rating of 130kg by mounting directly to the vehicle roll cage and the top of the vehicle tub section. The internal frame kit is mounted with a combination of M6, M8, and M10 fasteners and includes rubber gaskets for the mount holes required to be drilled into the factory hardtop
