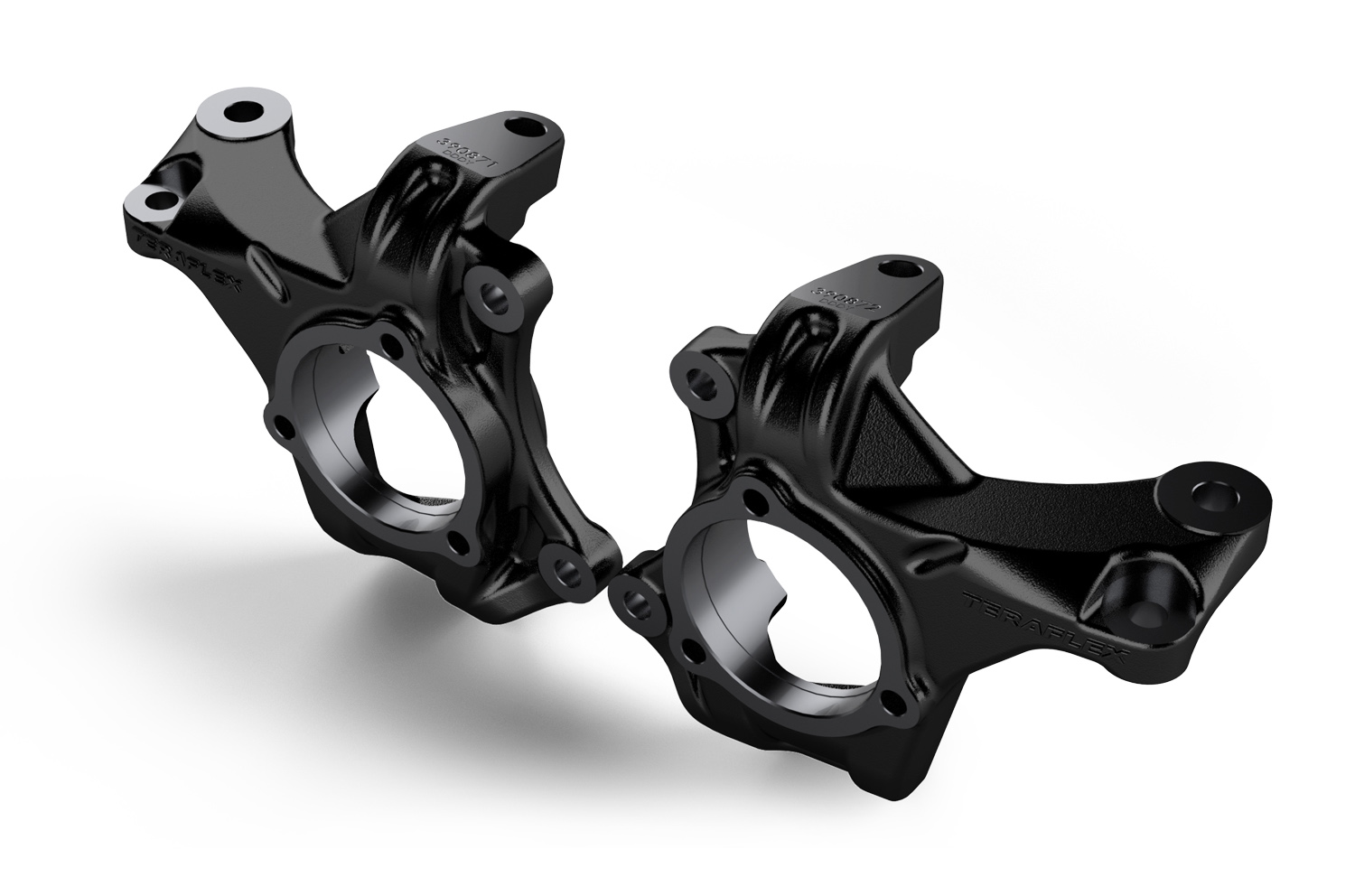

High Steer Knuckle Lift 4″+ Teraflex Jeep Wrangler JK 2/4 Doors
The TeraFlex HIGH STEER KNUCKLE KIT addresses several weaknesses prevalent in the stock axle steering configuration on JK Wrangler and JKU Wrangler Unlimited models with 4â€+ lift kits. This kit is compatible with all factory and aftermarket axle shafts, ball joints, wheel hubs, and tie rods and does not affect operation of factory stability and traction control systems including ESP and ABS.
Â
Specs:
- Fits Jeep Wrangler JK 2/4 Doors
- Lift Height: 4″+
- Driver side high steer knuckle
- Passenger side high steer knuckle
- Cast from HD ductile iron
- Reinforces key section areas prone to stress and deflection
- Maintains correct steering geometry angles for superior highway drivability
- Provides HD solution for several weak vulnerabilities found in stock JK / JKU axle steering configuration
- Increases tie rod ground clearance by more than 1-1/8†to reduce tie rod damage & bending
- Welding is required
- Requires aftermarket wheels w/ 4.5†backspacing
- This kit must be used with a COMPLETE HD FLIPPED DRAG LINK (TX1853930) or FLIPPED DRAG LINK (TX1600448)
- May require additional modifications to improve handling & maintain correct steering geometry
