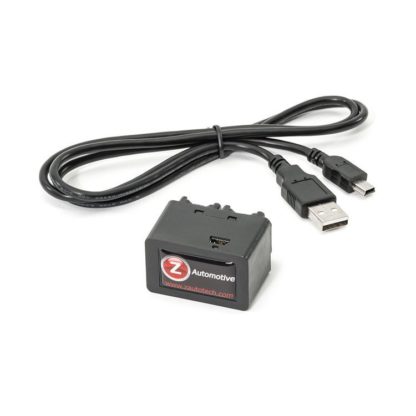

Pogrammer module Z Automotive Tazer JL Mini
A functional device that offers many possibilities
Tazer JL Mini is to be an essential tool for Jeep’s owners. This small, but at the same time very feature-rich and intuitive device, gives you full control over the basic and additional features of the vehicle, so you can fully personalize the equipment and operation of your vehicle.
Easy assembly
All engine and transmission variations supported, including export models. Simple, plug-in installation – unplug the SGW module and plug the Tazer JL Mini in its place. Located above the OBD2 Diagnostic connector. Features are all accessed using the dash display, using steering wheel buttons to navigate the menus.
Tazer JL Mini offers two working types:
- Permanent vehicle settings – functions works wether the module is plugged in or not
- Live vehicle functions – functions works while module is plugged in Only
Permanent vehicle settings:
- Change tire Size
- Change Gear Ratio
- Change Transfer case LOW ratio
- Enable/Disable TPMS system
- Change TPMS pressure warning limit front/rear (25psi85psi)
- Enable/Disable Backup camera
- Enable/Disable Cargo Camera input (8.4 Uconnect only)*
- Enable/Disable CD (wired audio) input*
- Enable/Disable TravelLink/XM traffic&weather
- Change Daytime Running Lights (DRL) region (type) or change DRL location
- Enable/Disable DRL Dropout function
- Enable/Disable factory fog lights
- Enable/Disable Fog Light Dropout (when Fogs shut off while High Beams are on)
- Enable/Disable Factory Halo lights (including BCM output for adding Halo’s)
- Enable/Disable Onetouch lane change
- Change Headlight type (std/LED)
- Change Fog light type (std/LED)
- Change Taillight type (std/LED)
- Change Front Turn Signal type (std/LED) – supports aftermarket LED lights too
- Enable/Disable Trailer Tow setting
- Enable/Disable Aux Button settings
- Enable/Disable Blind Spot detection (if hardware added or removed)
- Enable/Disable/Change Parksense configuration
- Disable Electronic Sway Bar (if removed from vehicle)
- Disable Front Axle Disconnect module for axle swaps
- Disable Front and Rear Lockers for axle swaps
- Disable Electronic Steering Pump for hydraulic steering conversions
- Change cluster splash screen Wrangler/Sahara/Rubicon
- Change HVAC controls setting to allow use of dual zone controls on single zone Jeep (for those upgraded the 5″ radio)
- Enable HomeLink for those that add the HomeLink Visor and harness
- Enable Proximity Entry for those that add the door handles and harnesses
- Enable Automatic headlamps (If hardware added)
- Enable/Disable PANIC button on remote
- Onetouch returntostock (Quick “unmarry” function returns all vehicle settings back to stock)
Live vehicle functions:
- AutoStopStart disable, remembers last state of the auto stop start system and will set it for you the next time you start the vehicle
- AutoTracKill, remembers last state of traction control system and will set it for you the next time you start the vehicle
- Can disconnect sway bar in 2WD up to 30mph (any speed if button mapped SwayKill is used)
- Can use backup camera and added cargo/front/undercarriage camera or media player at any speed
- TurnCAM, automatic backup camera when turn signals are used (8.4 uconnect only)
- Dark Mode, Turns off all exterior lighting and dash/radio/shifter lights while parked with engine running
- 3rd Brake Flash, Set rate and number of flashes to pulse the 3rd brake light when brakes are applied for increased visibility
- Light Show mode, 6 preset and 3 make-your-own Light shows that flashes all the exterior lights, perfect for car shows/first responders/off-road visibility. Control from Key Fob or steering wheel buttons. Can be enabled for in-motion use for parades, off-road and legal police/EMS
- Axle Locker control (Rubicon) – Engage lockers in 2WD and 4Hi on demand
- Hood Alarm, When the vehicle theft alarm is armed, monitors hood activity and will sound the alarm and flash light shows if opened
- Cooldown mode: Turn engine fans on demand when the ignition is on, engine not running
- Line Lock, Can lock front brakes for an easy burnout
- Rock Crawl, Can lock all four brakes by pressing steering wheel buttons to hold the vehicle still, especially helpful when off-road
- Winch Mode, Raise idle to 2000 RPM with a simple button press
- Button Mapping, Use cruise up, down and right buttons as quick-access to some of Tazer JL’s functions, when cruise control is off
- Display DTC’s, Shows the diagnostic codes that’s making the check engine light come on
- Clear CELs, Reset that pesky check engine light. Good when you have mods that set the light and you know exactly why
- 0 to 30 and 0 to 60 Timers, Displays 0-30 or 0-60 times on EVIC display
- Vacuum/Boost gauge, Watch real-time Manifold Pressure, great for boosted/turbo applications
- Firmware updates, the new firmware is available periodically, always free!
- TC Kill, Tuns off traction control, stability control and ABS
