Bumper past bij parkeer sensors uitgeruste Jeep Gladiator JT

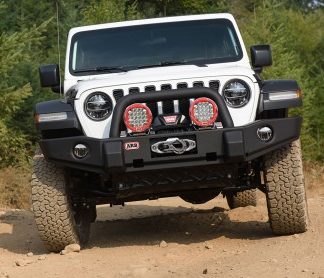

The Jeep Wrangler JL and Gladiator JT Winch Bumper has been designed for those JL/JT owners who  want the protection of a steel bar and a mount for driving lights and a winch, yet retaining the visual  appeal of the 7-slot grill of the JL and JT.

Depending on the model specification and option packages the Jeep Wrangler JL and Gladiator JT  feature a number of safety features including, but not limited to:

• ParkSense front parking sensors (JT Sport S, Overland and Rubicon)
• Integrated Off-Road Camera (JL & JT Rubicon Trail Ready Package)

The ARB Deluxe Winch Bumper is designed with the four-wheel driver in mind, including:

• Integrated winch mount
• Twin jack points in the pan of the bar
• Press formed apertures in the bar for fitment of OE LED fog lights
• Wing and wing brace design allows fitment of up to a 37” tyre with no contact (subject to suitable suspension and rim offset)
• Key Features
  • Vehicle specific design suits the Jeep Wrangler JL / Gladiator JT fitted with front parking  sensors
  • Supplementary fitting kit 3550230 is required for fitment to Rubicon model • Durable steel construction for maximum protection
  • Equally suited for winch or non-winch applications. Separate winch cover panel PN  3550120 available
  • Engineered, air bag compatible mounting system secures to the chassis via high tensile  bolts and ARB manufactured impact absorbers
  • Twin jack points located in centre pan to suit ARB Jack and mechanical jacks • Durable urethane buffers
  • Two aerial brackets located on the top of the centre pan
  • Will accommodate Warn, Magnum, Bushranger, Smittybilt low mount model electric  winches up to 10,000lb. Due to front parking sensors synthetic rope winches with a  hawse fairlead are recommend fitment
  • Provision to accommodate ARB Intensity LED’s and a range of Bushranger and IPF lights • Wing design allows for a 37” tyre to be fitted (suitable suspension lift and rim off set  required)
  • Approximate weight of the bar, chassis mounts and fitting kit is 52kg. • Zinc rich primer for additional corrosion resistance
  • Finished in Integrit™ black textured powder coat

  Parking Sensors

  Laser cut provision is provided in the pan and each wing for the Original Equipment ParkSense front  parking sensors. OE parking sensors have been mapped and their performance closely replicated  when fitted to the Wrangler and Gladiator.

  The outer side facing sensors are located

  approximately 15mm higher, 11mm outward

  and 35mm rearward. Outer forward facing

  parking sensors are located approximately

  130mm higher, 40mm outward and 35mm

  rearward. Inner sensors are located

  approximately 88mm higher, 77mm outward

  and 44mm rearward than the OE condition.

  When fitted with larger diameter tyres these

  parking sensor positions and hence range may also be affected. Further real-world testing has been  conducted evaluating the operation of the sensors against such items as rubbish bins, parking  bollards, wire fences, large rocks and step driveway entrances. Test results show that sensor  performance is replicated as close as practical with the change in height of the sensors location.

  Painting of parking sensors is not recommended due to the potential unknown effect on the  operation of the sensors. Sensor plugs as shown in the photos are included for vehicles without  parking sensors.

  2

  Fog Lights

  ARB’s Winch Bumper for the JL accepts the OE LED foglight in a

  pressed form aperture in each wing.

• Driving Light Mounts  Laser cut holes are included in the top of the centre pan forfitment of a range of compatible driving lights such as ARBIntensity, Bushranger and IPF 808, 800 and 900 Series Lights.

  Pinning holes for ARB Intensity lights are included.

  Winch Cover Panel Kit

  The top pan of the Winch Bumper bar features provision for an optional winch cover panel PN  3550120, for when no winch is being fitted.

  When fitted, the winch cover panel is recessed in the top pan to give a level and integrated  appearance. The cover is supplied in a Integrit™ textured black powder coat finish.

  Jack Points

  Each bar comes standard with two reinforced high lift jacking

  points fitted to the centre pan, perfect for use with the ARB Jack.

  3

  Winch Model Fitment

  Due to the centre front parking sensors, it is recommended to fit  a winch fitted with synthetic rope and a hawse fairlead. It is not  recommended to fit a winch fitted with steel cable and a roller  fairlead due to false triggering of the central parking sensors  due to the added length of the roller fairlead.

  The following winches fit this ARB Winch Bumper:

  • Warn M8000-S, XD9000-S, 9.5XP-S,

  9.5XDC-S

  • Warn ZEON 8-S, 10-S
  • Warn ZEON Platinum 10-S
  • Warn VR EVO 8-S and 10-S
  • Smittybilt Gen2 X20 10K.
  • Bushranger Revo 10-S
